Technical Information
Technical Information |

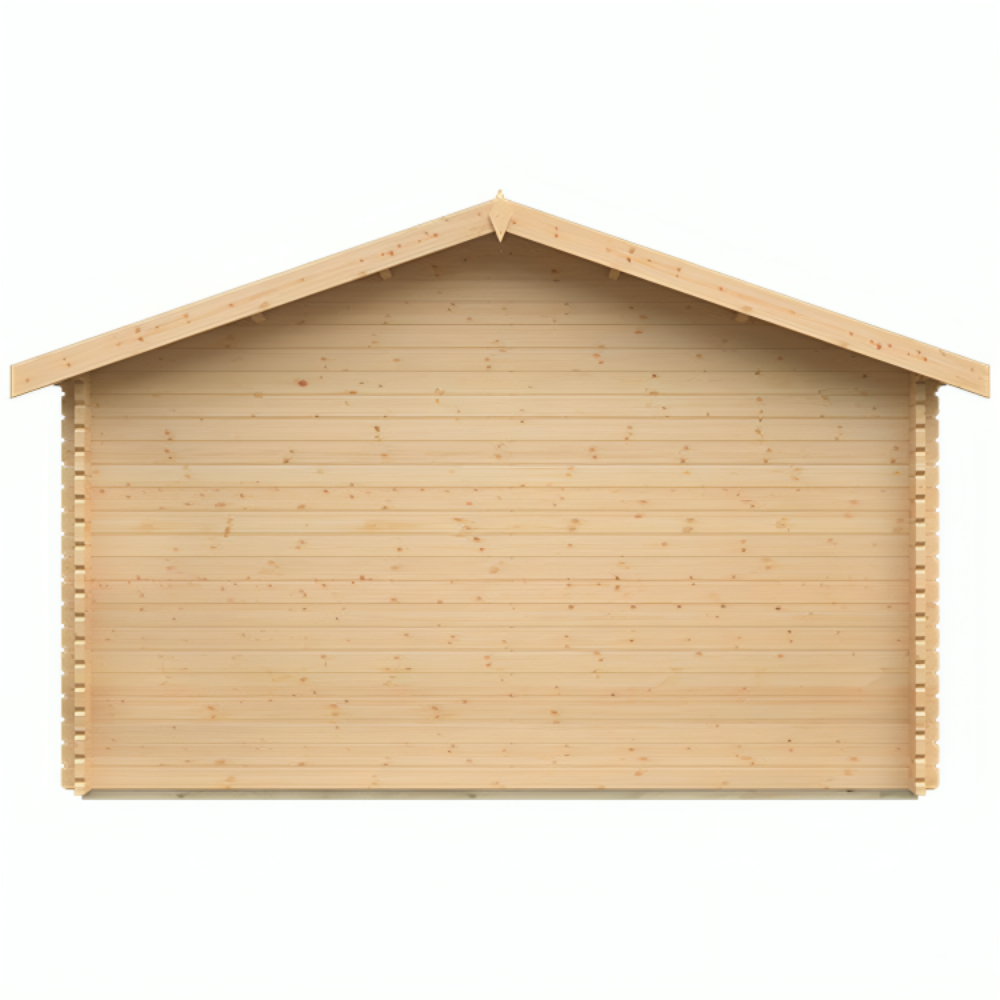

Wall Construction Material |

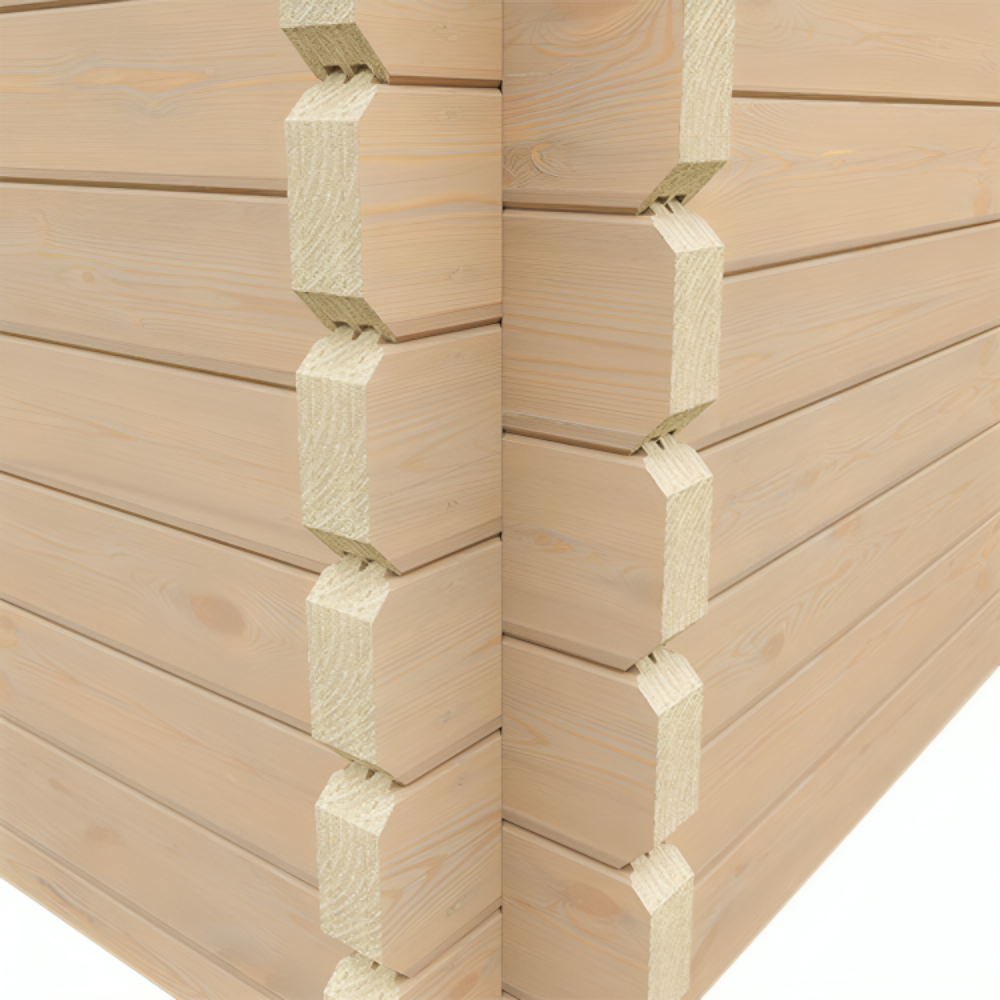

Durable Interlocking Tongue and Groove Logs |
Log Thickness |
44mm
|
Framing Method | Treated Bearers Exclusively | Frame Dimensions | 58mm x 44mm |

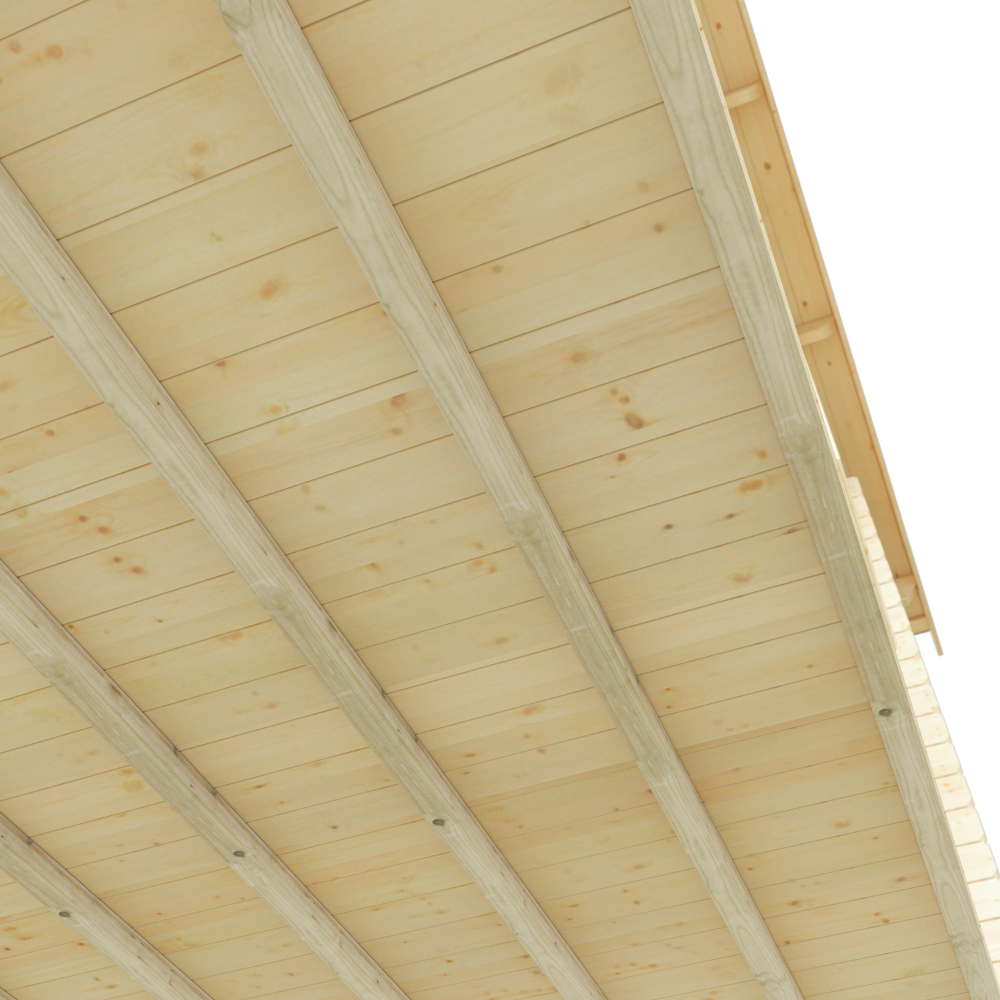

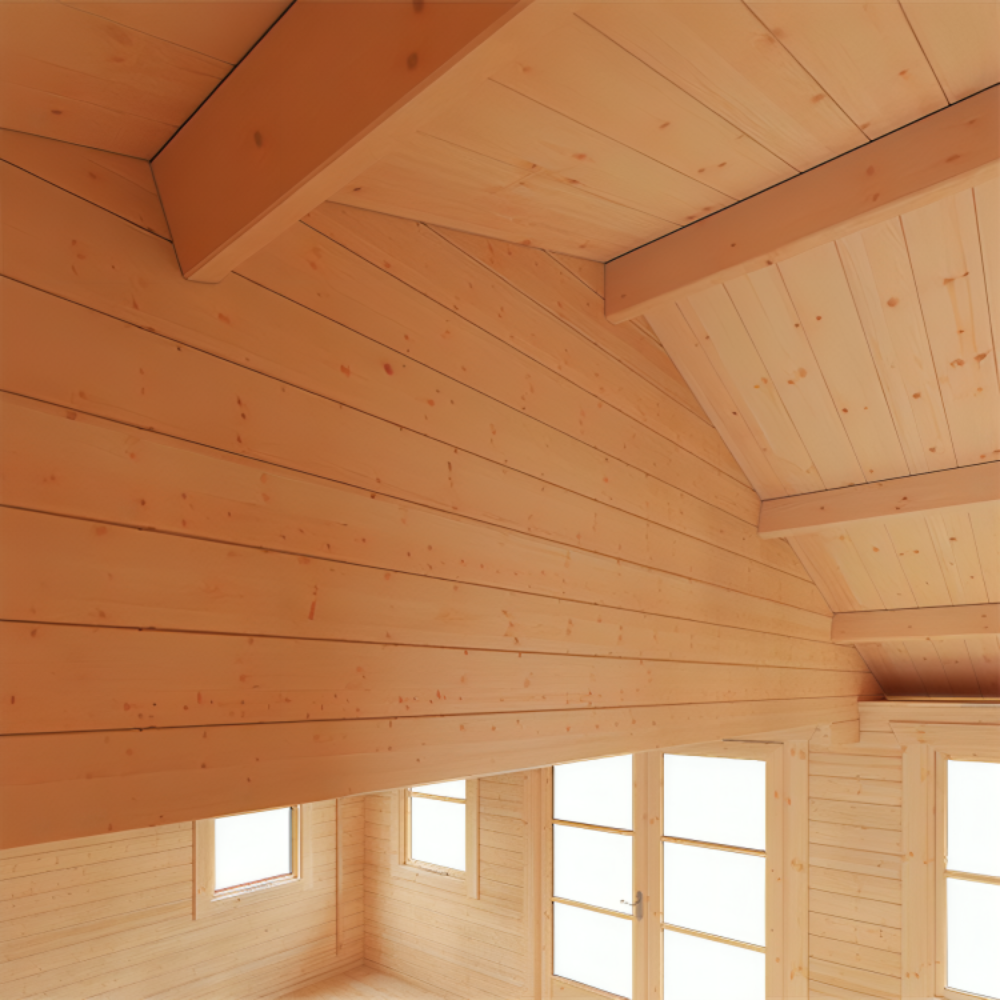

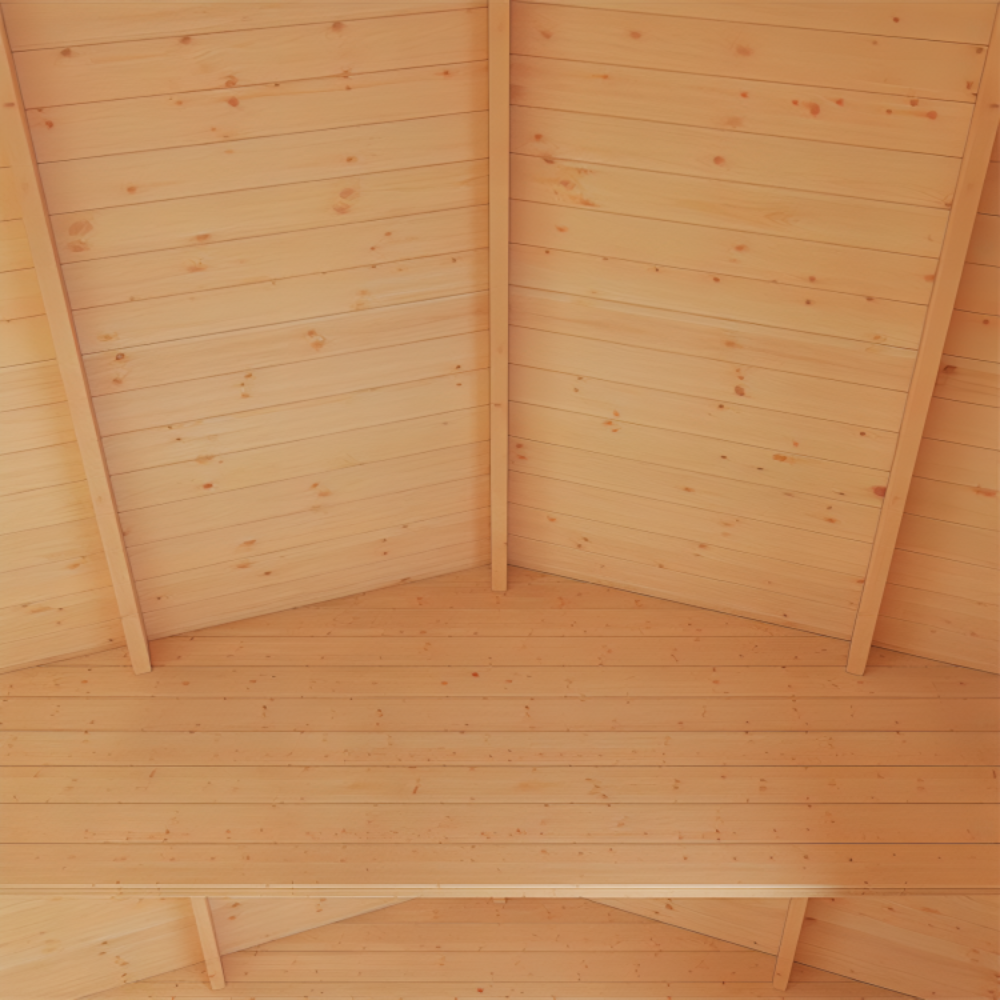

Roofing Material: | Tongue and Groove Boards | Thickness of Roof | 19mm |
Flooring Material |
Tongue and Groove Boards | Thickness of Floor | 19mm |

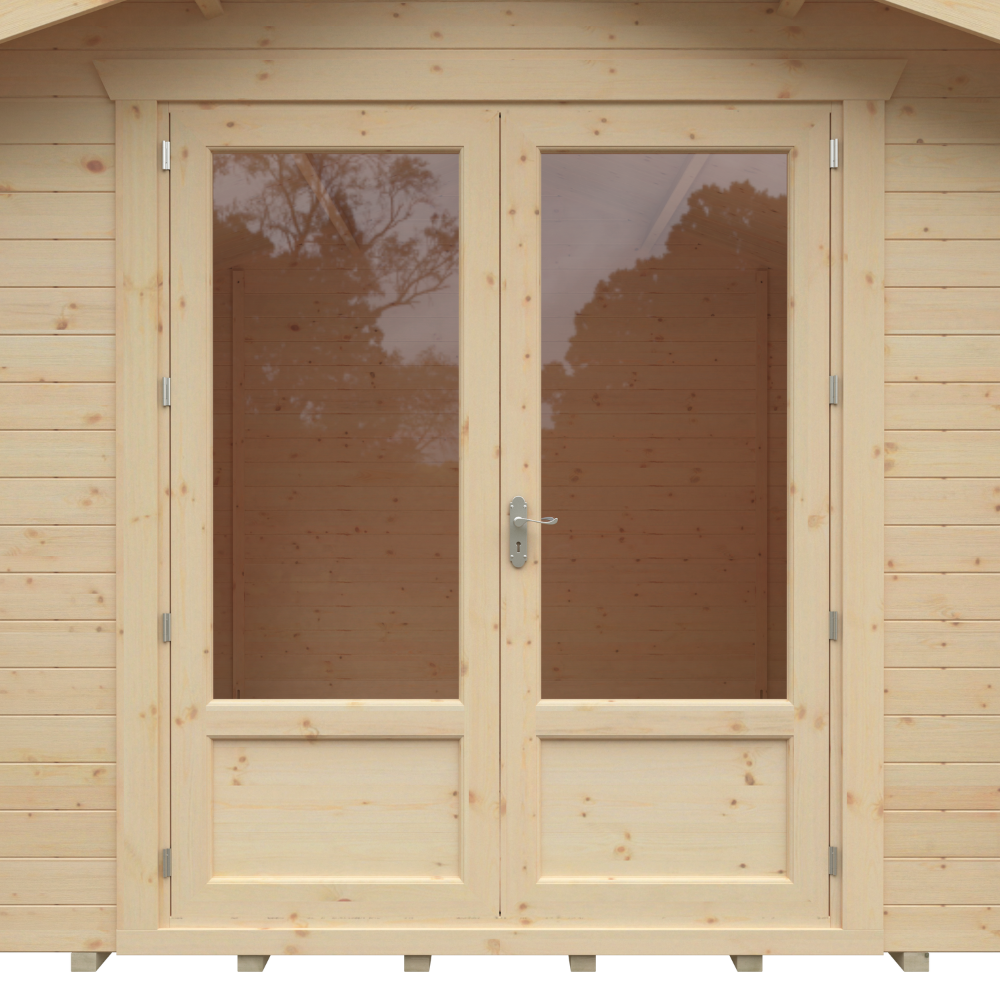

Door Design | Double Doors Crafted by a Joiner, Fully Glazed |
Door Dimensions | 1520mm x 1880mm |

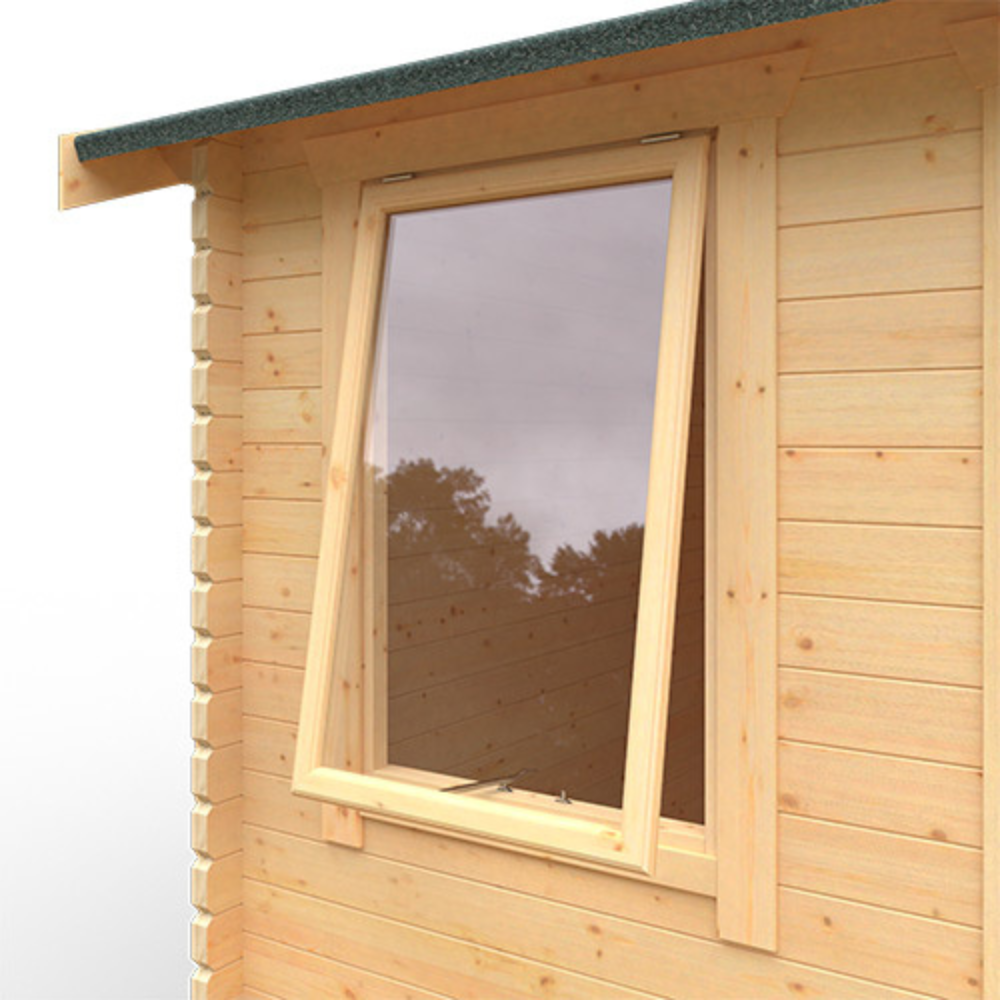

Window Design | Custom-Made-Pane Opening Window | Window Dimensions | 645mm x 1045mm |
Glazing Thickness | 3mm | Type of Glazing Material | Horticultural Glass |

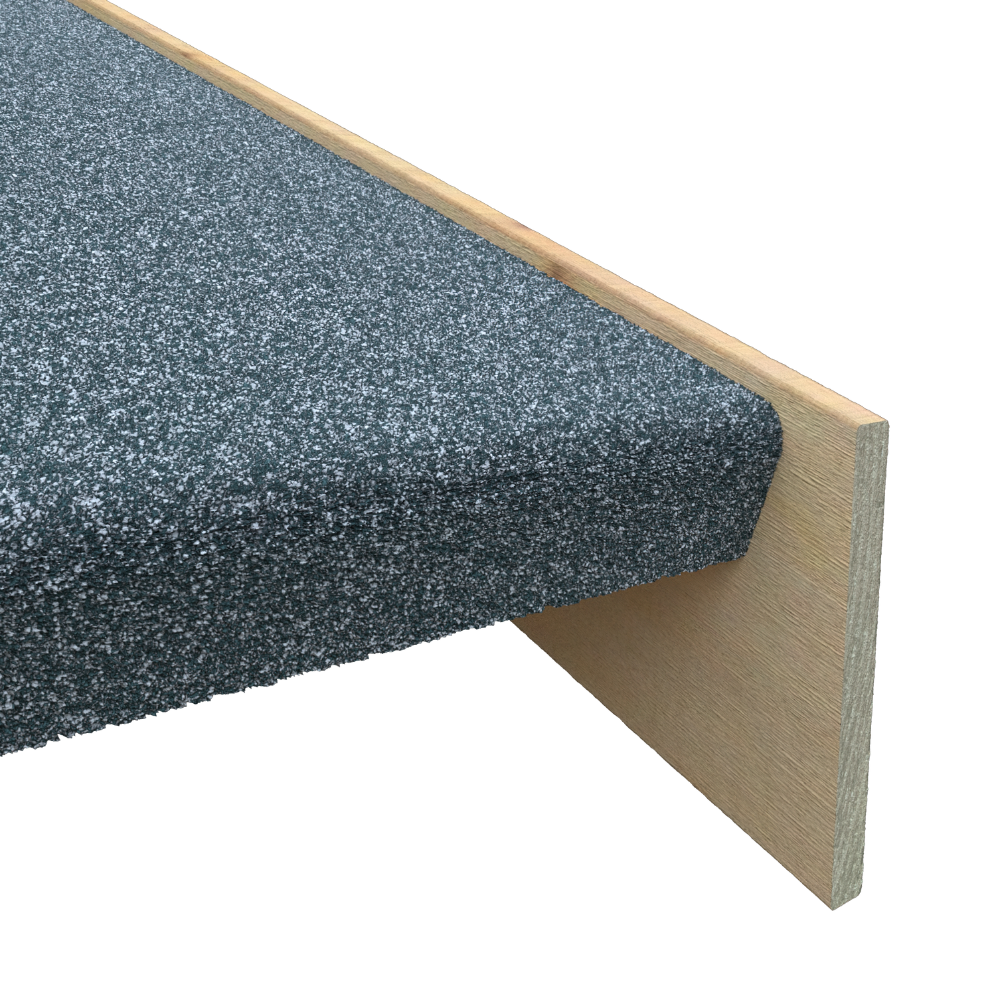

Roofing Material | Black Mineral Felt | Treatment | Untreated |

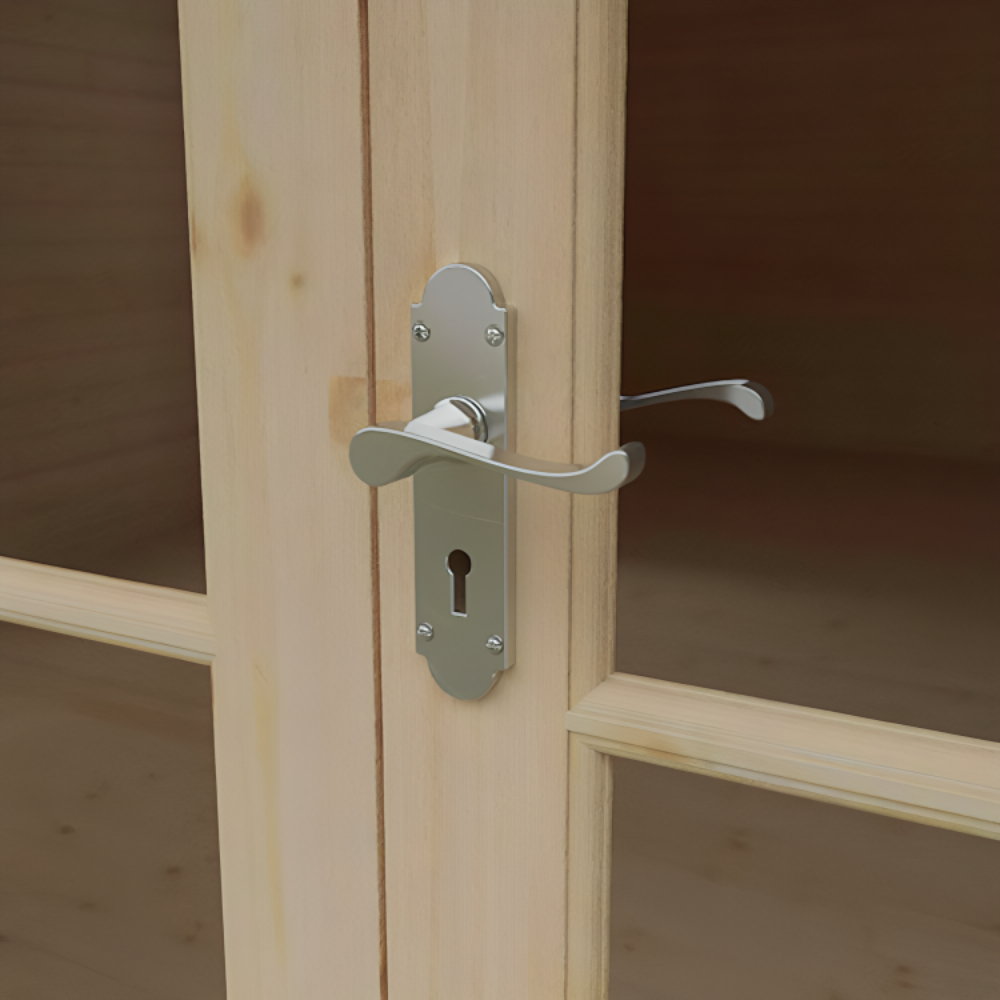

Locking Mechanism | Locking System, Brushed Steel Handles 3-Lever Lock | Material | Chosen European Softwoods |
Sizing

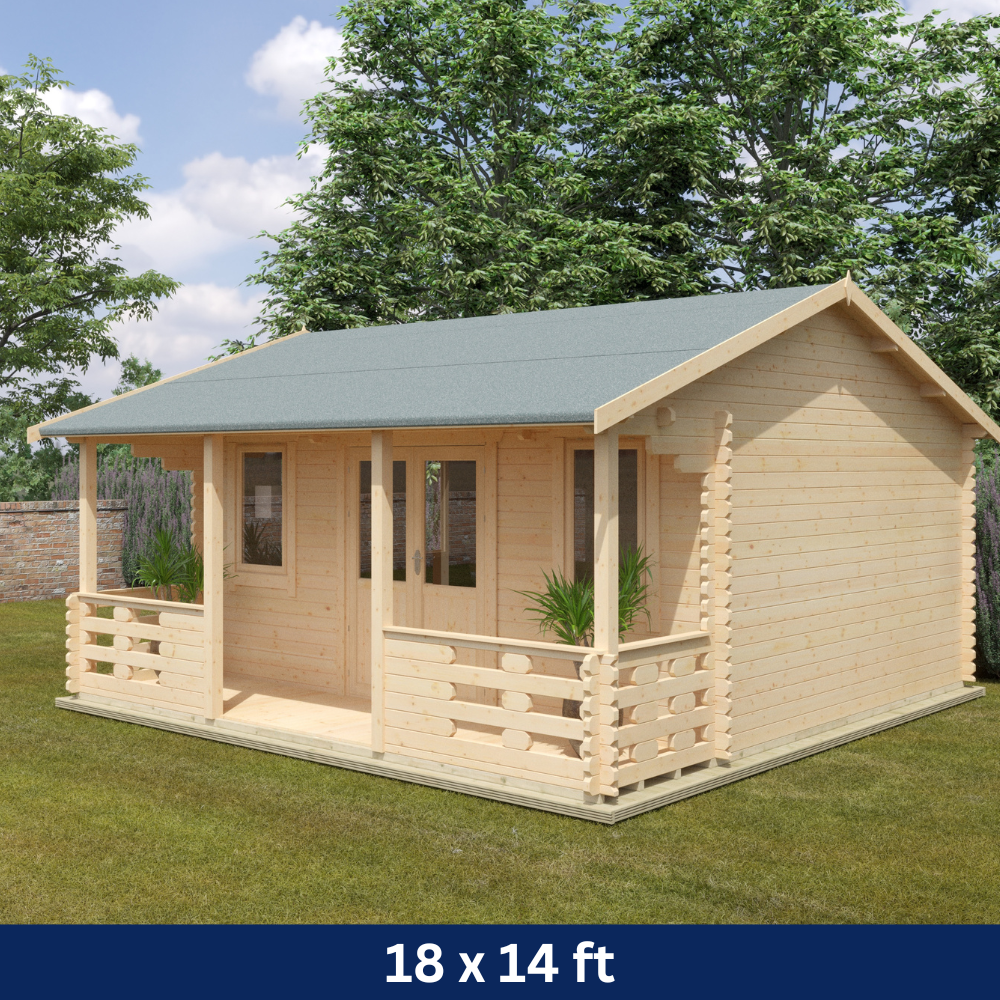

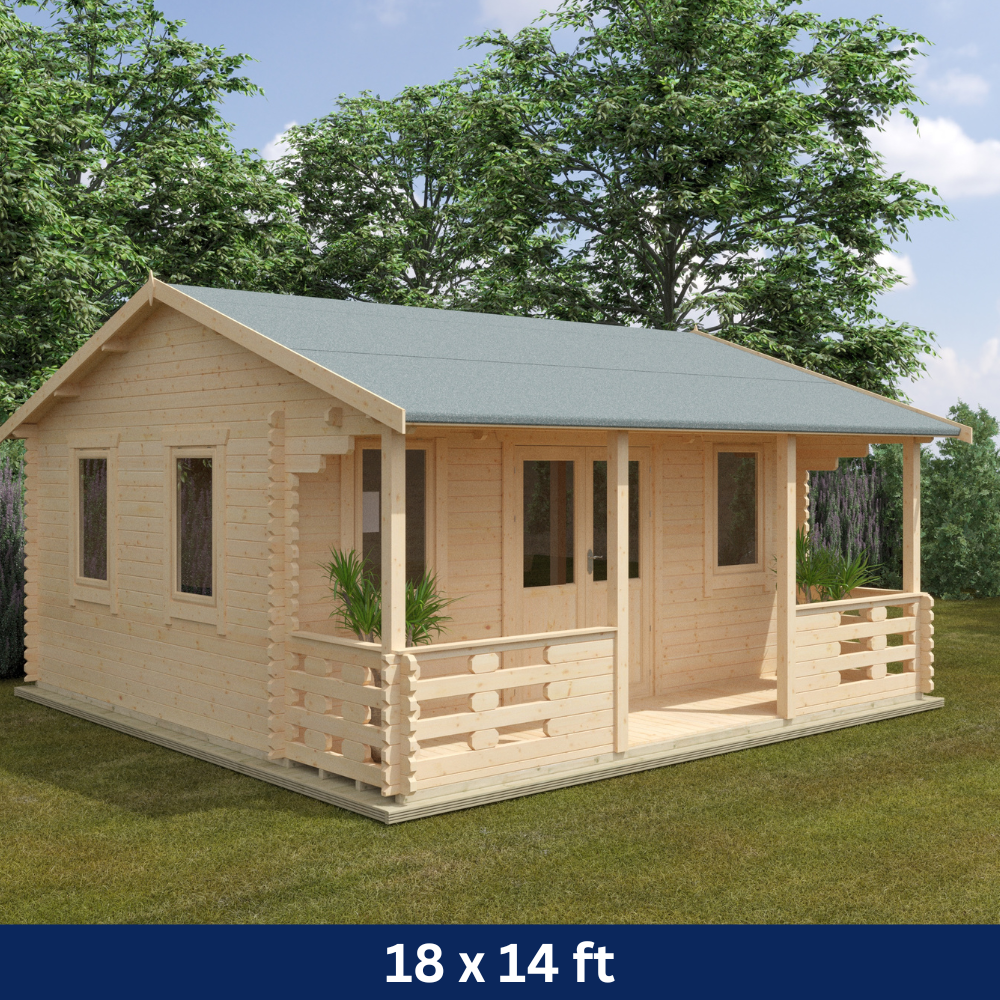

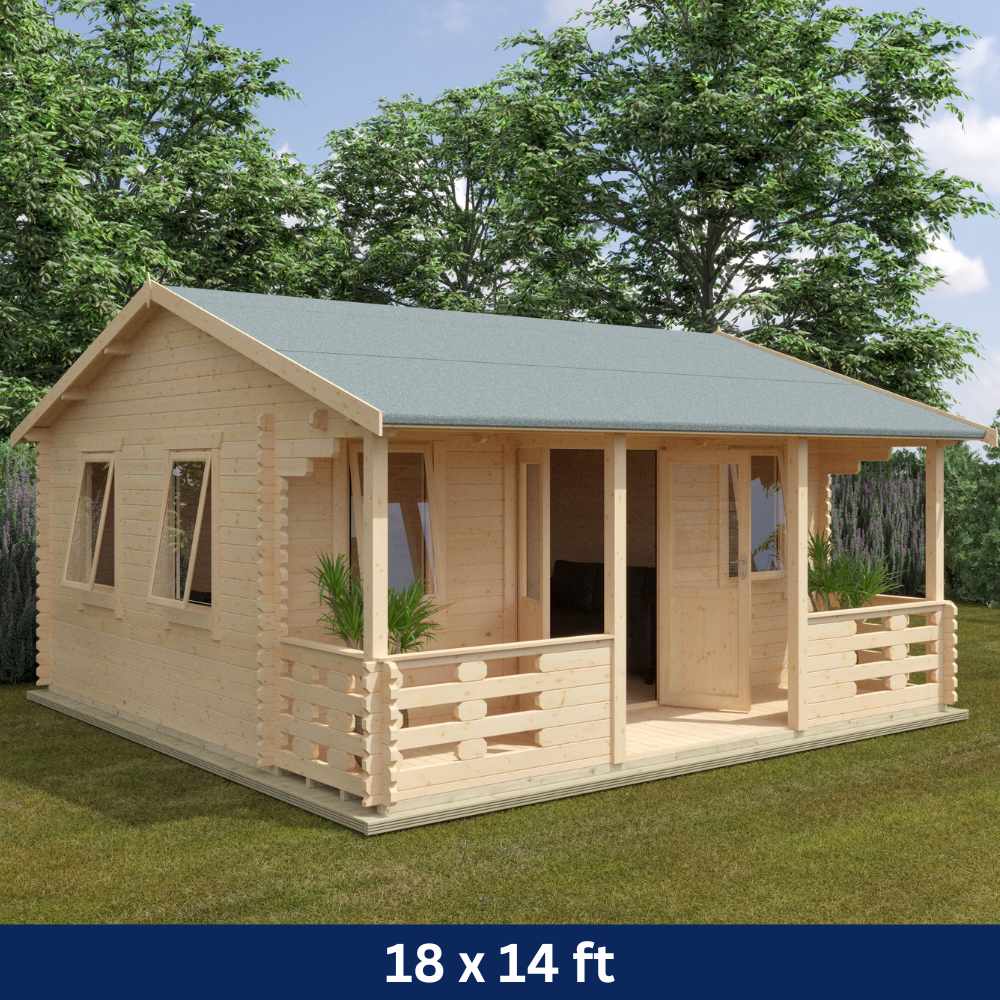

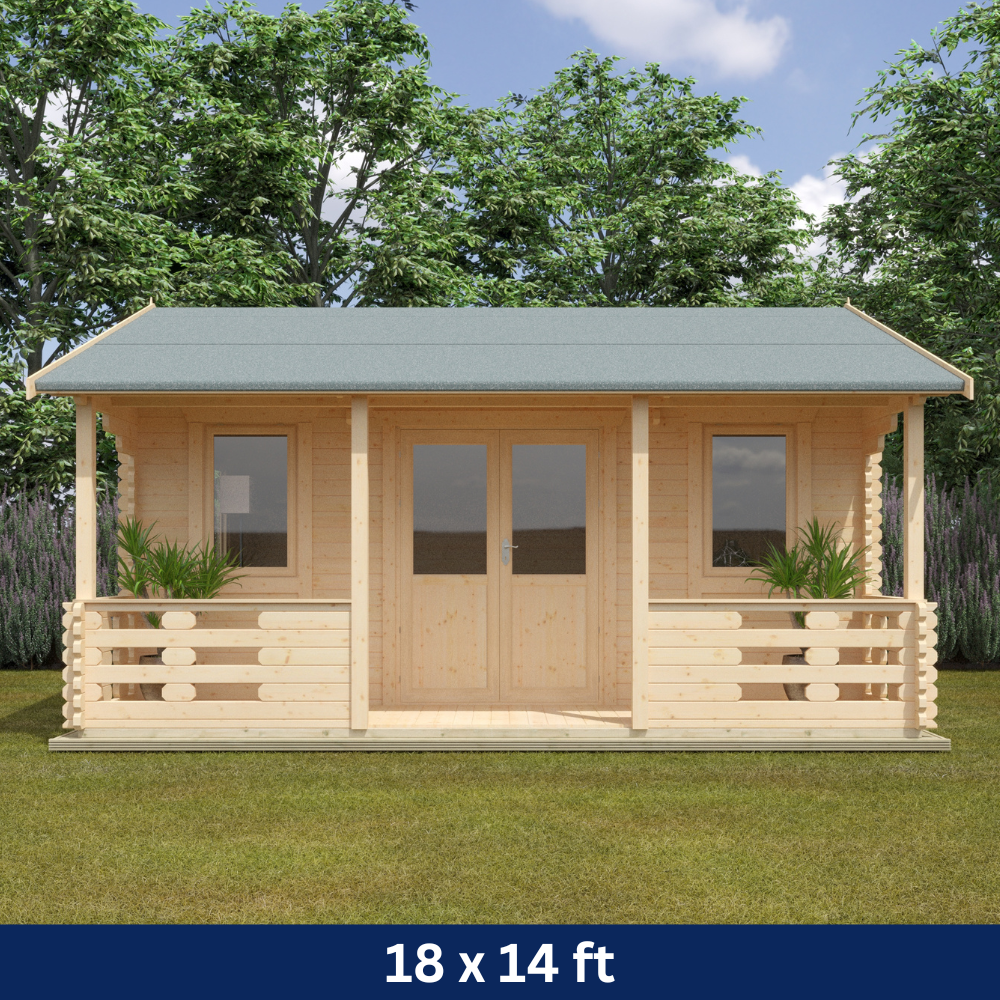

18x14 The Innovix | 44mm Log Cabin
Metric | Imperial |
Length | 5350mm | Length | 210.63" | |
Width | 4150mm | Width | 163.39" | |
Base Size |
5160mm x 3960mm
|
|
Base Size |
203.15" x 155.91"
|
Internal Size |
5072mm x 3872mm
|
|
Internal Size |
199.68" x 152.44"
|
External Ridge | 2932mm | External Ridge | 115.43" | |
External Eaves | 2189mm | External Eaves | 86.18" | |
Internal Ridge | 2720mm | Internal Ridge | 107.09" | |
Internal Eaves | 2126mm | Internal Eaves | 83.7" | |
Ext. Size (excl. Roof) |
5350mm x 4150mm
|
|
Ext. Size (excl. Roof) |
210.63" x 163.39"
|
Ext. Size (inc. Roof) |
5550mm x 4350mm
|
|
Ext. Size (inc. Roof) |
218.5" x 171.26"
|
No. of Windows | 4 | No. of Windows | 4 | |
Weight | 1813 Kg | Weight | 3990 lbs |

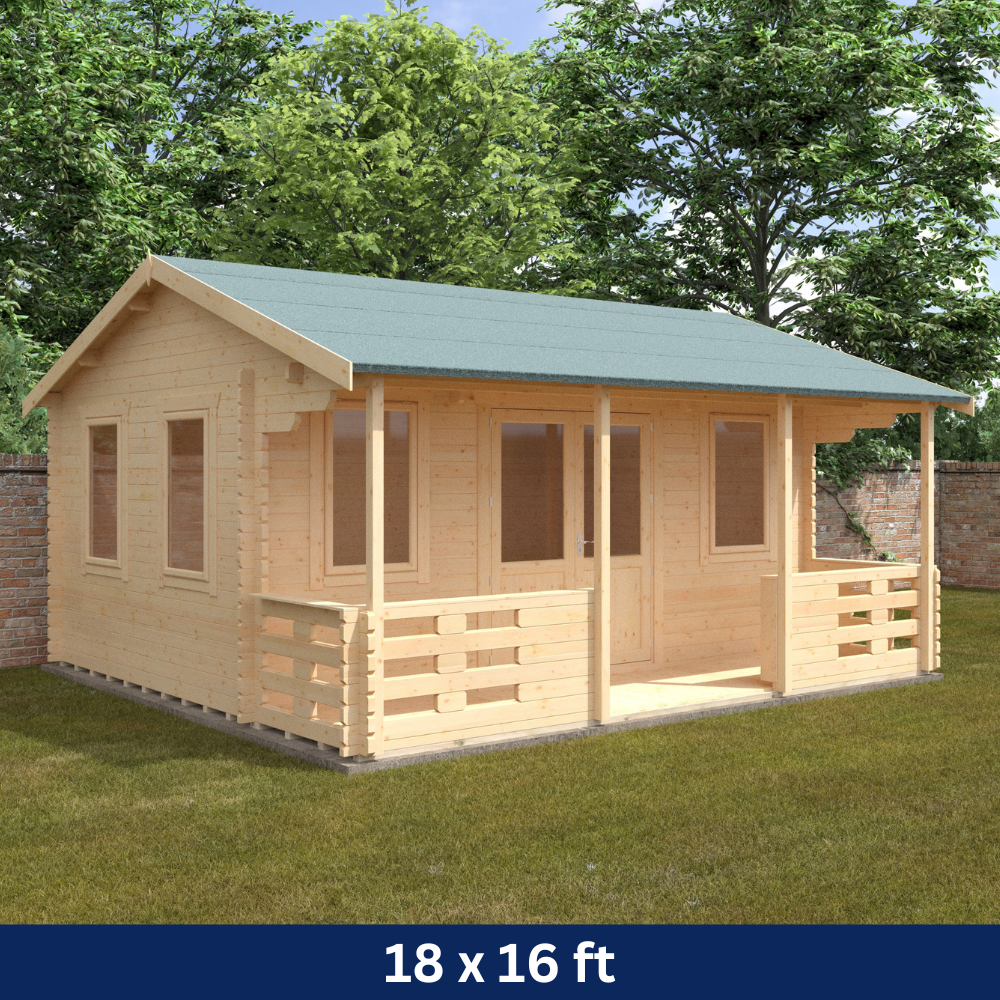

18x16 The Innovix | 44mm Log Cabin
Metric | Imperial |
Length | 5350mm | Length | 210.63" | |
Width | 4750mm | Width | 187.01" | |
Base Size |
5160mm x 4560mm
|
|
Base Size |
203.15" x 179.53"
|
Internal Size |
5072mm x 4472mm
|
|
Internal Size |
199.68" x 176.06"
|
External Ridge | 3036mm | External Ridge | 119.53" | |
External Eaves | 2189mm | External Eaves | 86.18" | |
Internal Ridge | 2824mm | Internal Ridge | 111.18" | |
Internal Eaves | 2126mm | Internal Eaves | 83.7" | |
Ext. Size (excl. Roof) |
5350mm x 4750mm
|
|
Ext. Size (excl. Roof) |
210.63" x 187.01"
|
Ext. Size (inc. Roof) |
5550mm x 4950mm
|
|
Ext. Size (inc. Roof) |
218.5" x 194.88"
|
No. of Windows | 4 | No. of Windows | 4 | |
Weight | 1933 kgs | Weight | 4252 lbs |

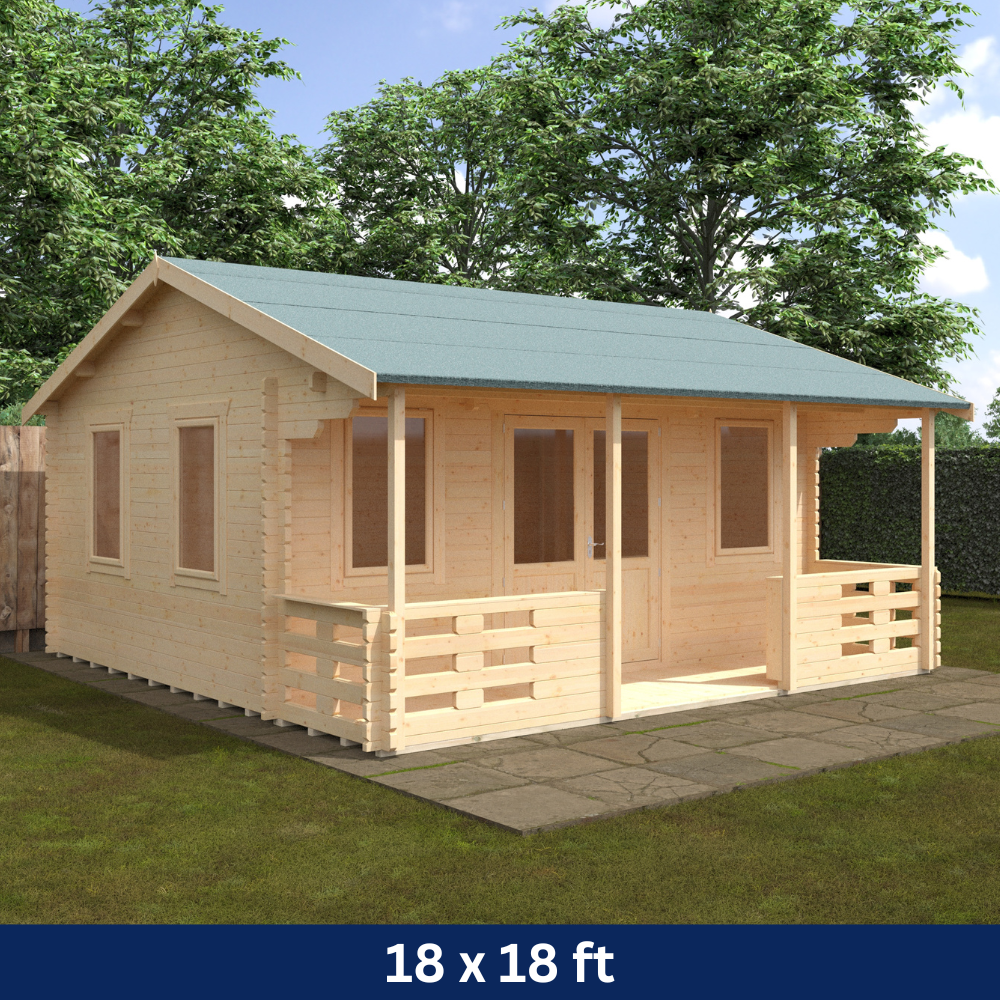

18x18 The Innovix | 44mm Log Cabin
Metric | Imperial |
Length | 5350mm | Length | 210.63" | |
Width | 5350mm | Width | 210.63" | |
Base Size |
5160mm x 5160mm
|
|
Base Size |
203.15" x 203.15"
|
Internal Size |
5072mm x 5072mm
|
|
Internal Size |
199.68" x 199.68"
|
External Ridge | 3139mm | External Ridge | 123.58" | |
External Eaves | 2189mm | External Eaves | 86.18" | |
Internal Ridge | 2927mm | Internal Ridge | 115.24" | |
Internal Eaves | 2126mm | Internal Eaves | 83.7" | |
Ext. Size (excl. Roof) |
5350mm x 5350mm
|
|
Ext. Size (excl. Roof) |
210.63" x 210.63"
|
Ext. Size (inc. Roof) |
5550mm x 5550mm
|
|
Ext. Size (inc. Roof) |
218.5" x 218.5"
|
No. of Windows | 4 | No. of Windows | 4 | |
Weight | 2132 kgs | Weight | 4691 lbs |

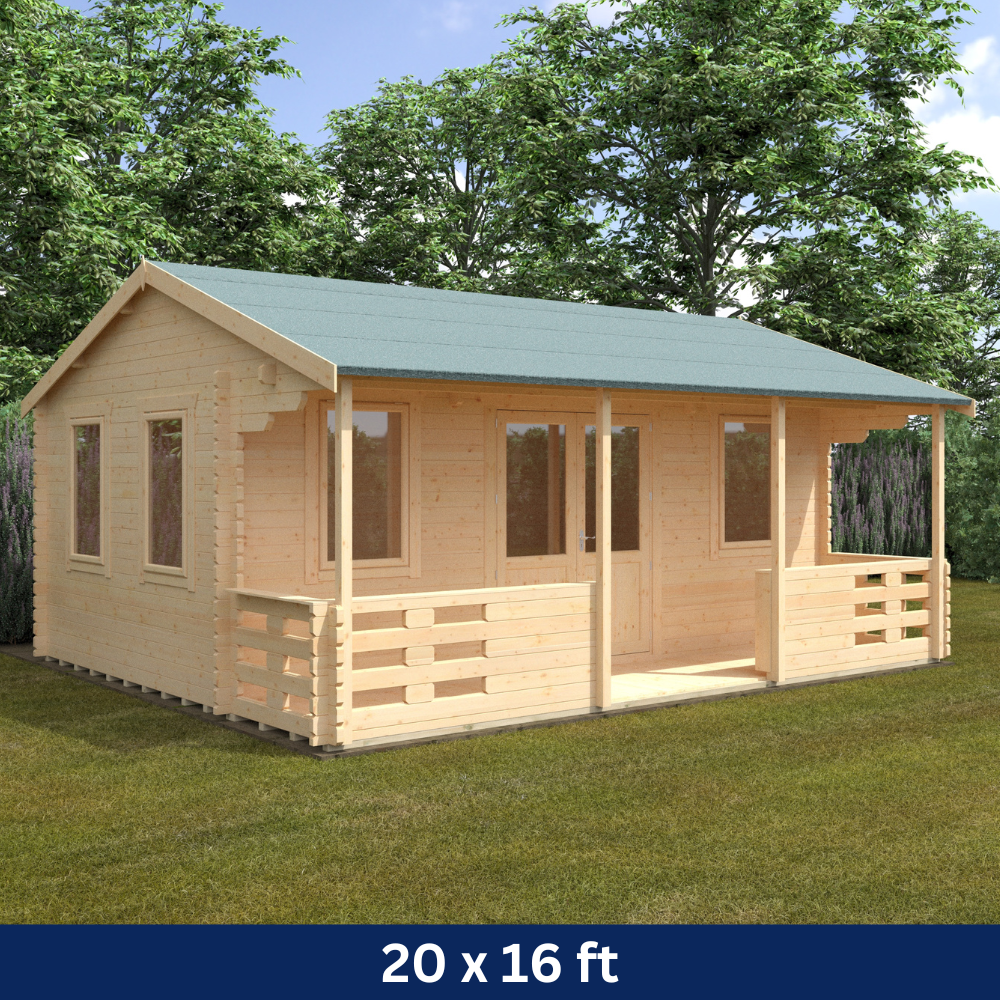

20x16 The Innovix | 44mm Log Cabin
Metric | Imperial |
Length | 5950mm | Length | 234.25" | |
Width | 4750mm | Width | 187.01" | |
Base Size |
5760mm x 4560mm
|
|
Base Size |
226.77" x 179.53"
|
Internal Size |
5672mm x 4472mm
|
|
Internal Size |
223.31" x 176.06"
|
External Ridge | 3036mm | External Ridge | 119.53" | |
External Eaves | 2189mm | External Eaves | 86.18" | |
Internal Ridge | 2824mm | Internal Ridge | 111.18" | |
Internal Eaves | 2126mm | Internal Eaves | 83.7" | |
Ext. Size (excl. Roof) |
5950mm x 4750mm
|
|
Ext. Size (excl. Roof) |
234.25" x 187.01"
|
Ext. Size (inc. Roof) |
5950mm x 4950mm
|
|
Ext. Size (inc. Roof) |
234.25" x 194.88"
|
No. of Windows | 4 | No. of Windows | 4 | |
Weight | 1999 kgs | Weight | 4399 lbs |

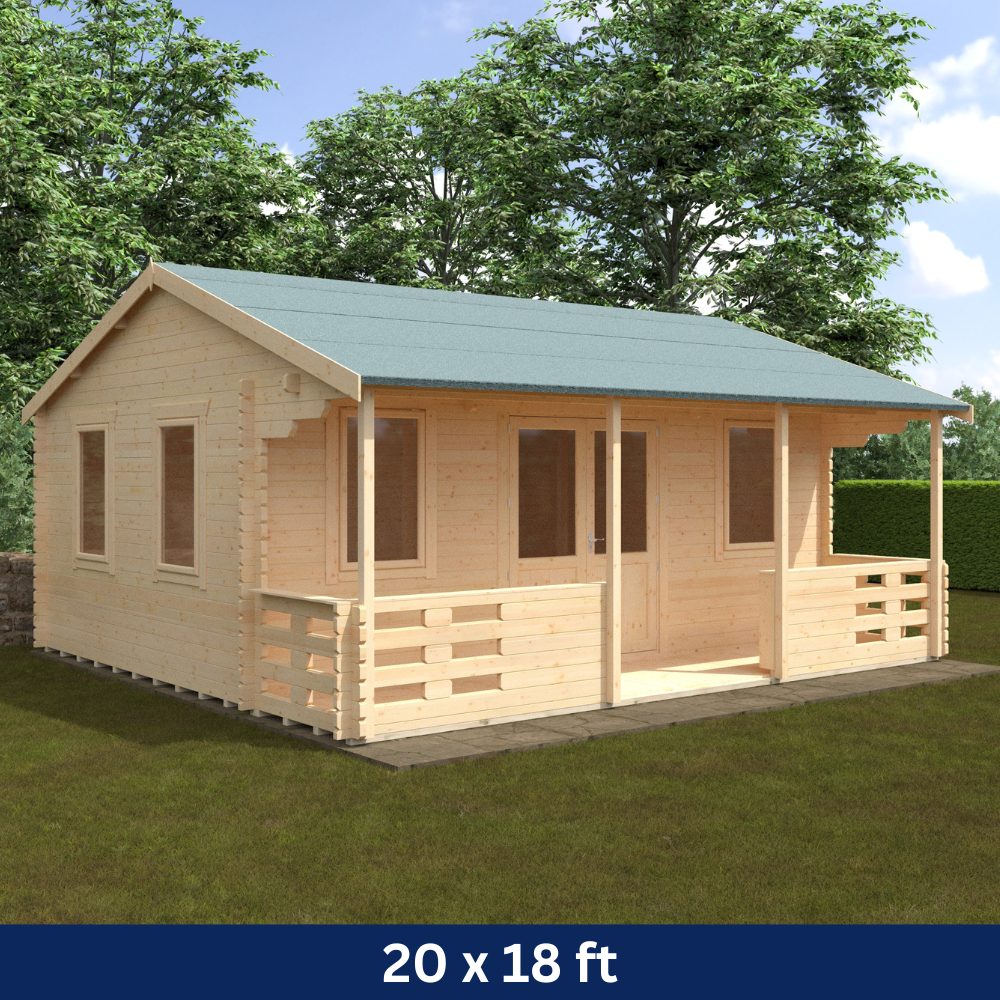

20x18 The Innovix | 44mm Log Cabin
Metric | Imperial |
Length | 5950mm | Length | 234.25" | |
Width | 5350mm | Width | 210.63" | |
Base Size |
5760mm x 5160mm
|
|
Base Size |
226.77" x 203.15"
|
Internal Size |
5672mm x 5072mm
|
|
Internal Size |
223.31" x 199.68"
|
External Ridge | 3139mm | External Ridge | 123.58" | |
External Eaves | 2189mm | External Eaves | 86.18" | |
Internal Ridge | 2927mm | Internal Ridge | 115.24" | |
Internal Eaves | 2126mm | Internal Eaves | 83.7" | |
Ext. Size (excl. Roof) |
5950mm x 5350mm
|
|
Ext. Size (excl. Roof) |
234.25" x 210.63"
|
Ext. Size (inc. Roof) |
5950mm x 5550mm
|
|
Ext. Size (inc. Roof) |
234.25" x 218.5"
|
No. of Windows | 4 | No. of Windows | 4 | |
Weight | 2245 Kg | Weight | 4940 lbs |

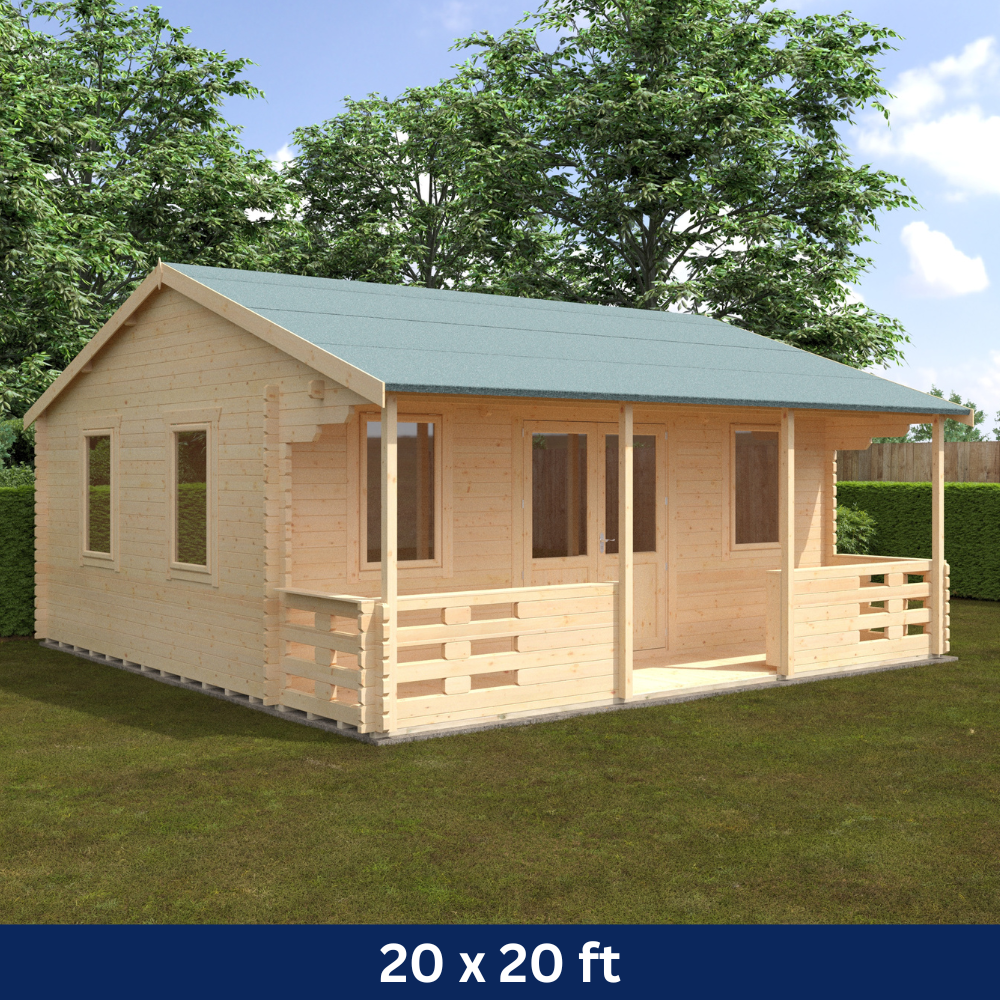

20x20 The Innovix | 44mm Log Cabin
Metric | Imperial |
Length | 5950mm | Length | 234.25" | |
Width | 5950mm | Width | 234.25" | |
Base Size |
5760mm x 5760mm
|
|
Base Size |
226.77" x 226.77"
|
Internal Size |
5672mm x 5672mm
|
|
Internal Size |
223.31" x 223.31"
|
External Ridge | 3242mm | External Ridge | 127.64" | |
External Eaves | 2189mm | External Eaves | 86.18" | |
Internal Ridge | 3030mm | Internal Ridge | 119.29" | |
Internal Eaves | 2126mm | Internal Eaves | 83.7" | |
Ext. Size (excl. Roof) |
5950mm x 5950mm
|
|
Ext. Size (excl. Roof) |
234.25" x 234.25"
|
Ext. Size (inc. Roof) |
5950mm x 6150mm
|
|
Ext. Size (inc. Roof) |
234.25" x 242.13"
|
No. of Windows | 4 | No. of Windows | 4 | |
Weight | 2400 kgs | Weight | 5279 lbs |
Why Choose Us?
- FREE delivery to most of the UK mainland - See delivery section for more details
- High quality slow-grown European softwood is used
- Ethically sourced timber
- All log cabins are made to order
- All our log cabins are UK-manufactured
- Power felt is supplied as standard
- Joiner-made windows and doors
- Choice of glazing type
- Four-way chamfered notch system
- High-Quality locking system
Delivery Information
Free Delivery to most of the UK mainland - See map below
One of our dedicated customer service team members will be assigned to your order and will personally manage all aspects of your delivery.
Delivery is kerbside only unless agreed as otherwise prior to delivery. You will need an appropriate space as close to your kerbside as possible for our driver to deliver to.
Movement of delivered goods beyond kerbside is the responsibility of the customer unless discussed and agreed as otherwise prior to delivery. Even with agreement, movement of the panels beyond kerbside is at the driver's discretion as the driver will need to assess access on arrival, to ensure that they can safely move the panels to any requested location beyond kerbside.
The driver will not carry panels through your property as they are not insured to do so.
10 Year Guarantee
All our log cabins are made to the same high standards, with the same quality timber – so they get the same market-leading 10 Year Guarantee. For more information on our guarantee please contact via email support@homegamesroom.co.uk
